This instrument is a precision instrument for the oil exploitation, especially in the Middle East and other water deficient areas etc. The system can calculate the amount of water needed to be injected into the whole area to eject crude oil out of the ground, through simulates the pressure of water on oil by centrifugal force. It can calculate rock sample driving–substitute capillary pressure Pci automatically and directly observe liquid capacity variation in the chamber (Drainage and Imbibition). It has the same performance as the URC-628 ultra rock core centrifuge produced by Coretest Systems, Inc. In the United States.
YXL-15B has many patents:

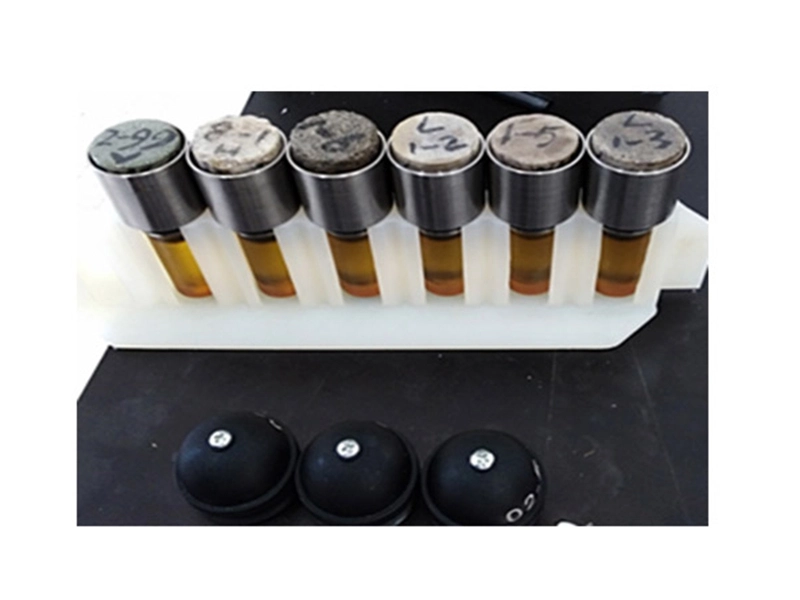

ZL200920066358.9(Drainage core holder)

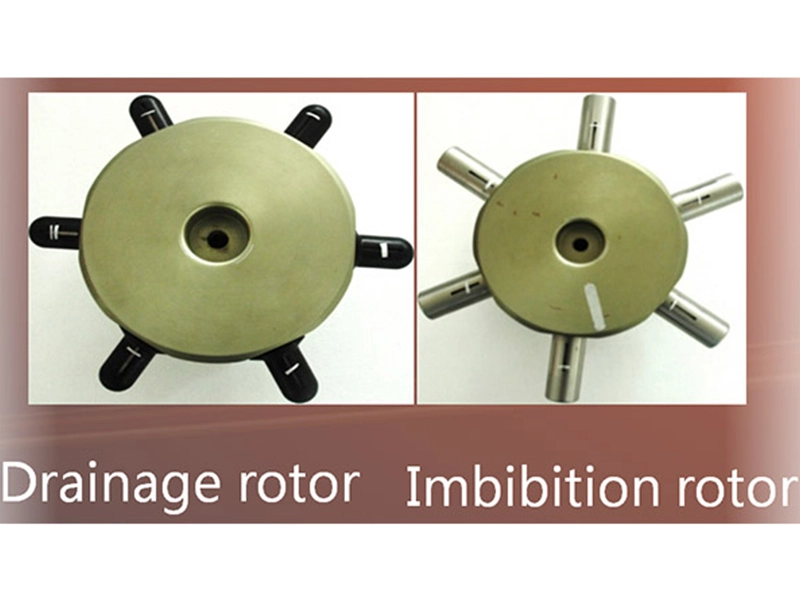

ZL200920066093.2(Rock core test rotor)
ZL200920066357.4(Imbibition core holder)

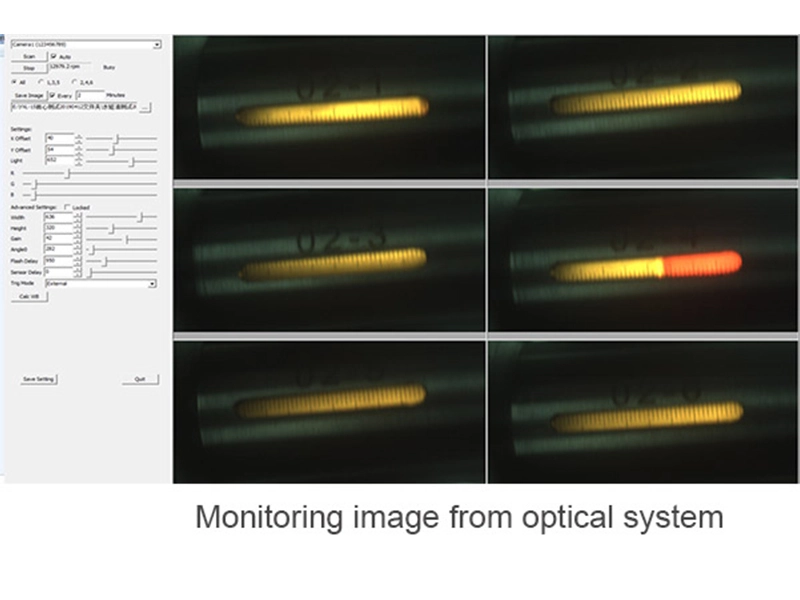

YXL-15B oil rock core centrifugal analyzer includes the vacuum system, optical system, core analysis rotor, 10 inch touch scree control system and drive system, which all meet international standards.
|Speed Control Accuracy||±20 r/min|
|Temp. Setting Range||10℃～40℃|
|Time Control Range||0～23h59min|
|Power Supply||AC220V±10% 50Hz 30A (with independent earth wire)|
|Environment Requirement||Temp.: 10～35℃ Relative humidity≤85%|
|Rotor for 1 inch.sample:||applicable for rock core with dimension: 1 inch x 1 inch diaeter|
|Rotor for 1.5 inch.sample||applicable for rock core with dimension: 1.5 inch x 2 inch diaeter|
