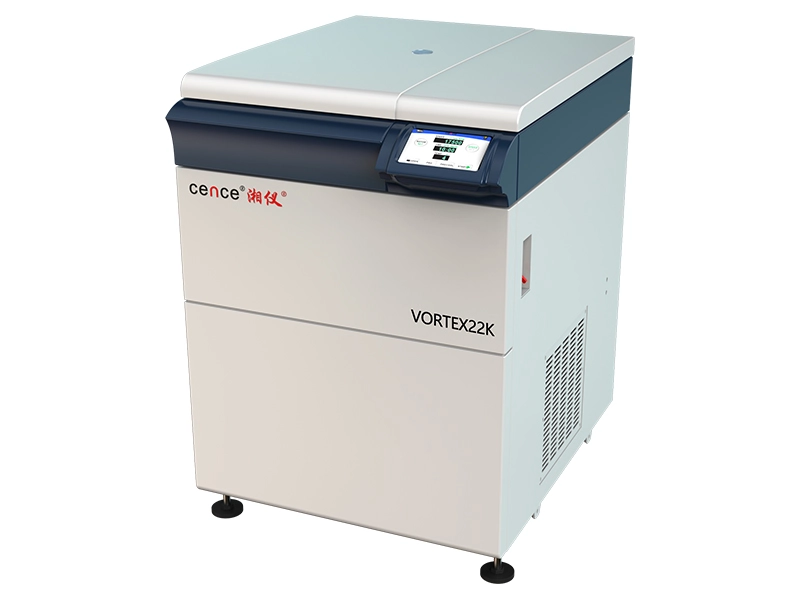

VORTEX 22K Large Capacity High Speed Refrigerated Centrifuge
Centrifuge VORTEX 22K is an intelligent centrifuge developed by Cence/Xiangyi. It can monitor 1 to 100 centrifuges through intelligent terminal (computer), monitor the operation status of centrifuges, and save relevant records of centrifuge operation, Establish a safe connection with the centrifuge and remotely control the startup and stopping of the centrifuge, It meets the requirements for the integrity of operation information of biopharmaceutical GMP instruments. Come with standard network interface, user can control the centrifuge by Mobile APP.
Automatic door opening & closing by just touch the key on the screen.
Door lid come with intelligent anti pinch device.

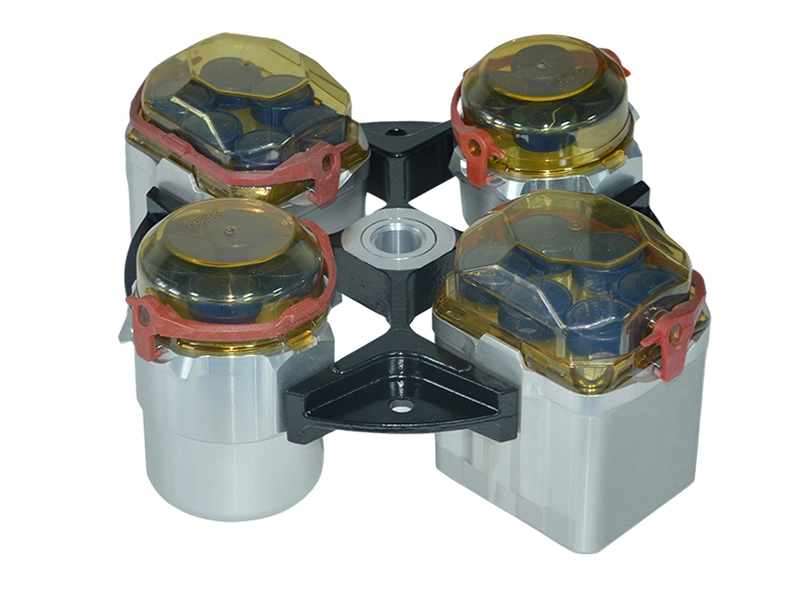

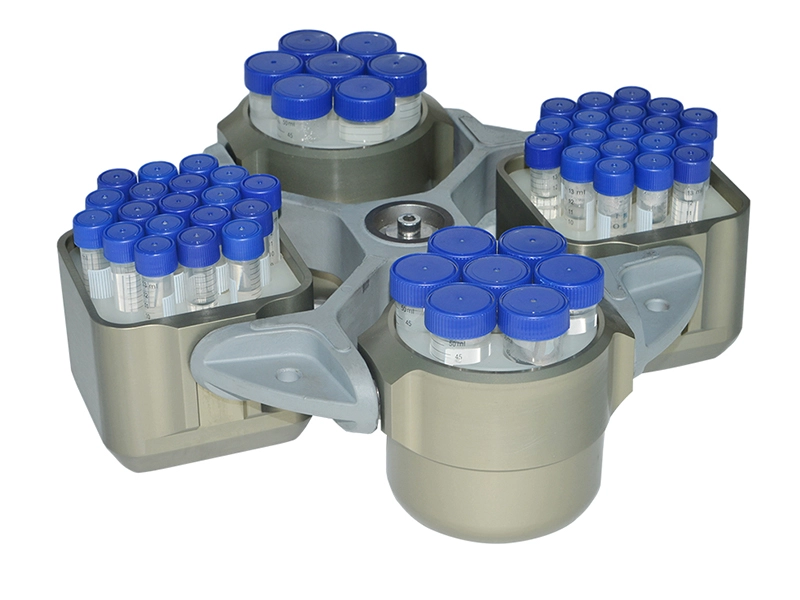

Max speed up to 22000r/min, Max RCF up to 52020xg. Angle rotor 6x500ml can efficiently separating biological products, Swing rotor sample processing capacity up to 4x750ml, which greatly improves the production efficiency and separation effect.
Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps ( set speed, time, temperature ), to meet the diversified experimental needs.
The centrifuge chamber is made of 316L stainless steel and 2mm thick ( material certificate can be provided).
Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifugal effect.
In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key.
Powerful control system allows easy data capture, storage, and processing

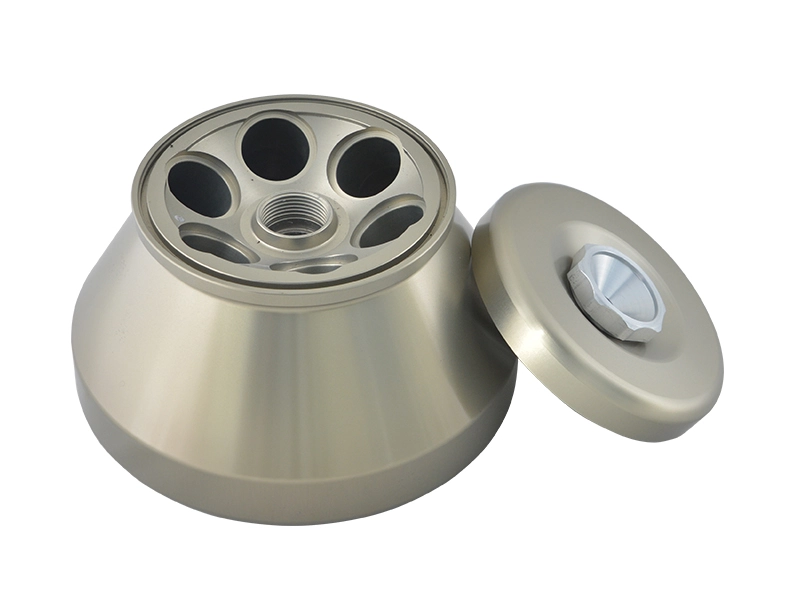

The rotor adopt 7075-T6 aviation grade alloy aluminum and titanium alloy, hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report, tensile test report, chemical composition test report and processing test report can be provided.
Featuring multiple protection, Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
|Max. Speed||Angle rotor 22000r/min|
|Swing rotor 4000r/min|
|Max. RCF||Angle rotor 52020xg|
|Swing rotor 3500xg|
|Max. Capacity||Angle rotor 6x500ml|
|Swing rotor 4x750ml|
|Time Setting Range||Two modes optional:1min to 99h59min and 1s to 99min59s；Default mode: 1s to 99min59s|
|Temperature Setting Range||-20℃ to 40℃, Step 1℃ adjustable|
|Automatic Door Locking System||Yes (Optional)|
|Computer Control||RS485 or RS232|
|Protection Function||Imbalance Protection, Rotor Identification, Door Lid Anti Pinch Protection, Motor Overheating Protection, Over-speed Protection and Over-temperature Protection|
|Power Supply||AC220V±22V 50Hz|
|Packing Dimension (WxDxH)||920x1040x1200(mm)|
