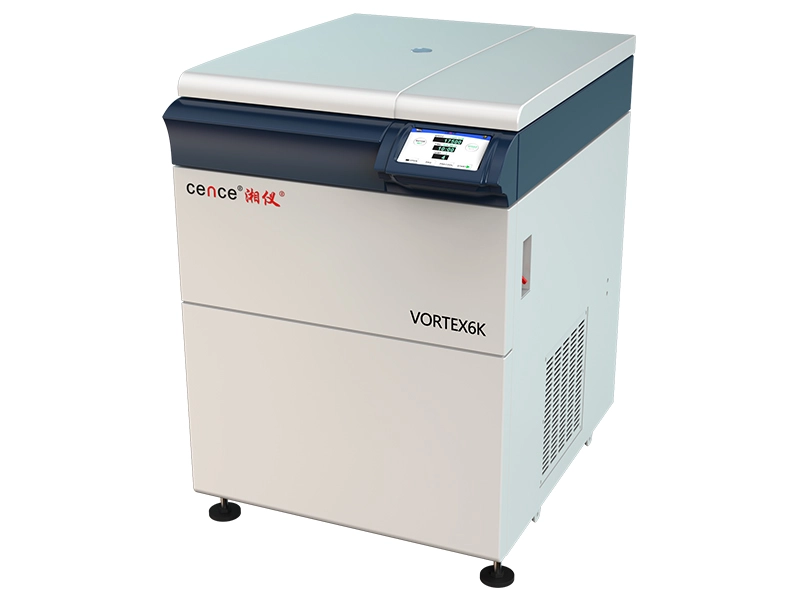

VORTEX 6K 6x1000mL Low Speed Refrigerated Centrifuge

VORTEX 6K Large Capacity Low Speed Refrigerated Centrifuge

Centrifuge VORTEX 6K is an intelligent centrifuge developed by Cence/Xiangyi. It can monitor 1 to 100 centrifuges through intelligent terminal (computer), monitor the operation status of centrifuges, and save relevant records of centrifuge operation, Establish a safe connection with the centrifuge and remotely control the startup and stopping of the centrifuge, It meets the requirements for the integrity of operation information of biopharmaceutical GMP instruments. Come with standard network interface, user can control the centrifuge by Mobile APP.

Advantages Of VORTEX 6K Angle Head Centrifuge

  • Automatic door opening & closing by just touch the key on the screen.

  • Door lid come with intelligent anti pinch device.

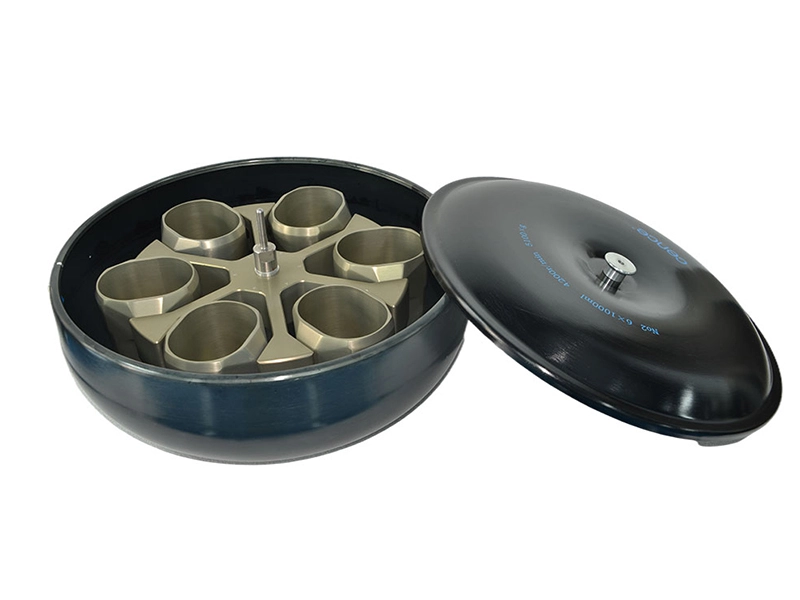

  • Swing rotor 6x1000ml for biological product separation. It can also separate 6x400ml triple blood bags in one cycle, which greatly improves the production efficiency and separation effect.

  • Multiple protective functions, including the protection of over-speed, over-temperature, motor over-heating as well as door lid.

  • The system adopts unified and standard Ethernet communication interface and provides key parameter point table, to facilitate system expansion and bring data into system monitoring.

  • Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps ( set speed, time, temperature ), to meet the diversified experimental needs.

  • 11 acceleration and 12 deceleration rate ( NO.10 rate can be self-defined), to prevent second emulsion or turbid, to achieve best centrifugation result.

  • In Manual mode, parameters can be set quickly. RCF and speed be shifted by just touch the key.

  • Powerful control system allows easy data capture, storage, and processing

  • The rotor adopt 7075-T6 aviation grade alloy aluminum, hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report, tensile test report, chemical composition test report and processing test report can be provided. Centrifuge chamber adopt 2mm thick 316L stainless steel, Housing (3mm Q235 steel) Containment (15mm Q235 steel), Diaphragm in door lid (3mm Q235 steel )

  • (Optional ) It can monitor 1 to 100 centrifuges through intelligent terminal (computer); Provide real-time connection with centrifuge with mobile APP; Built in help information in each interface; Make the centrifuge intelligent.



Technical Parameter Of VORTEX 6K Angle Head Centrifuge

ModelVORTEX 6K
Order No.204260031
Max. SpeedAngle rotor 6000r/min
Swing rotor 4200r/min
Max. RCFAngle rotor 6680xg
Swing rotor 5100xg
Max. CapacityAngle rotor 6x500ml
Swing rotor 6x1000ml
Speed Accuracy±10r/min
Time Setting RangeTwo modes optional: 1min to 99h59min and 1s to 99min59s; Default mode: 1s to 99min59s
Timing ModeStart timing after spinning, Start timing after reach setting speed, Continuous timing, Operation at an appointed time
Temperature Setting Range-20℃ to 40℃, Step 1℃ adjustable
Temperature Accuracy±2℃
Pre-cooling FunctionYes
Rotor IdentificationYes
Imbalance ProtectionYes
Computer ControlRS485 or RS232
Protection FunctionImbalance Protection, Rotor Identification, Door Lid Anti Pinch Protection, Motor Overheating Protection, Over-speed Protection and Over-temperature Protection
Noise≤ 65dB(A)
Power SupplyAC220V±22V 50Hz
Power Consumption4kW
Dimension (WxDxH)728x935x943mm
Packing Dimension (WxDxH)920x1040x1200mm
Net Weight330kg

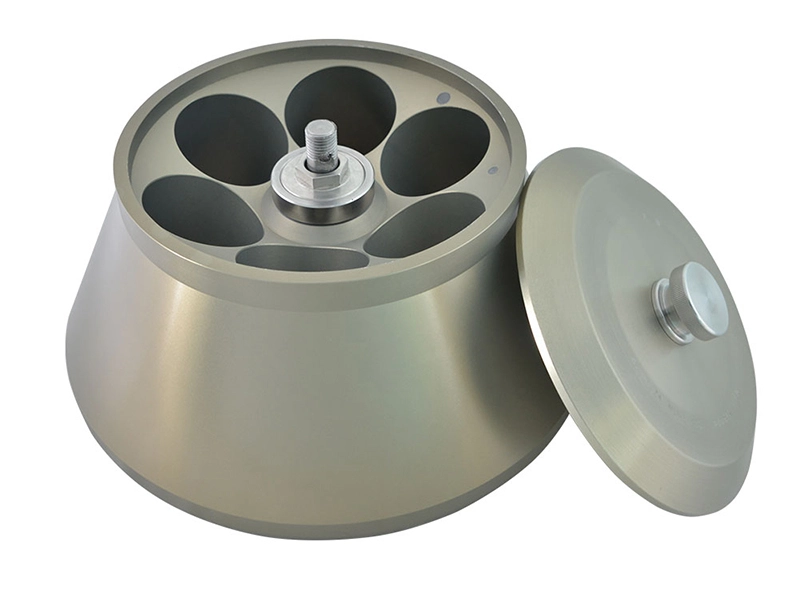

Rotor Parameter Of VORTEX 6K Angle Head Centrifuge

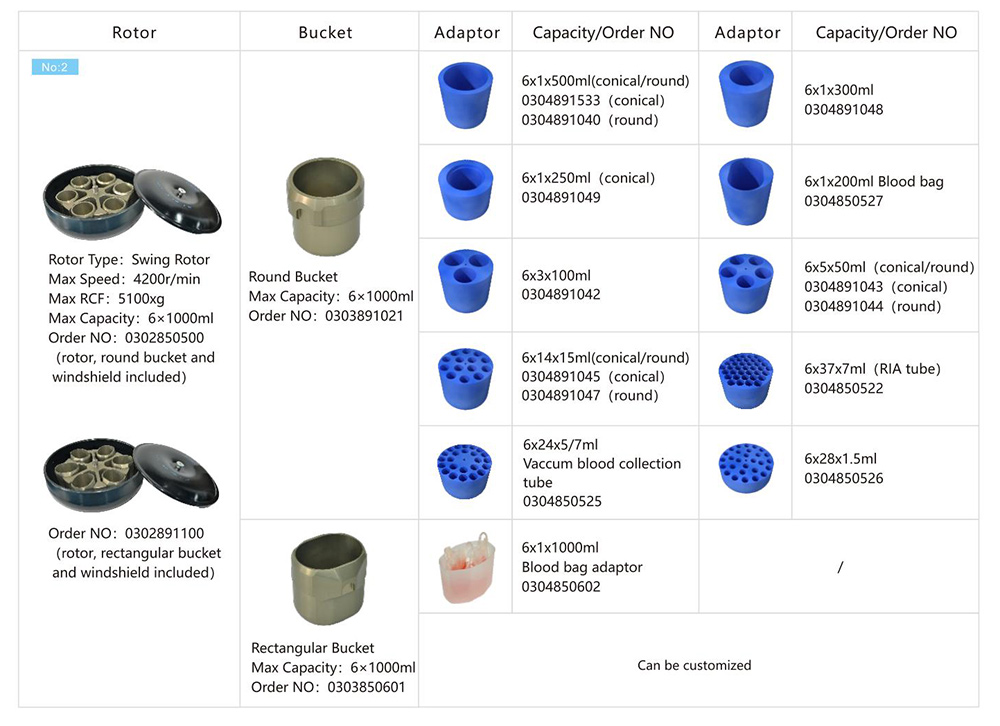

Flow Centrifuge Rotor Parameter Of VORTEX 6K 6x1000mL Low Speed Refrigerated Centrifuge

Continuous Tubular Centrifuge Rotor Parameter Of VORTEX 6K 6x1000mL Low Speed Refrigerated Centrifuge
