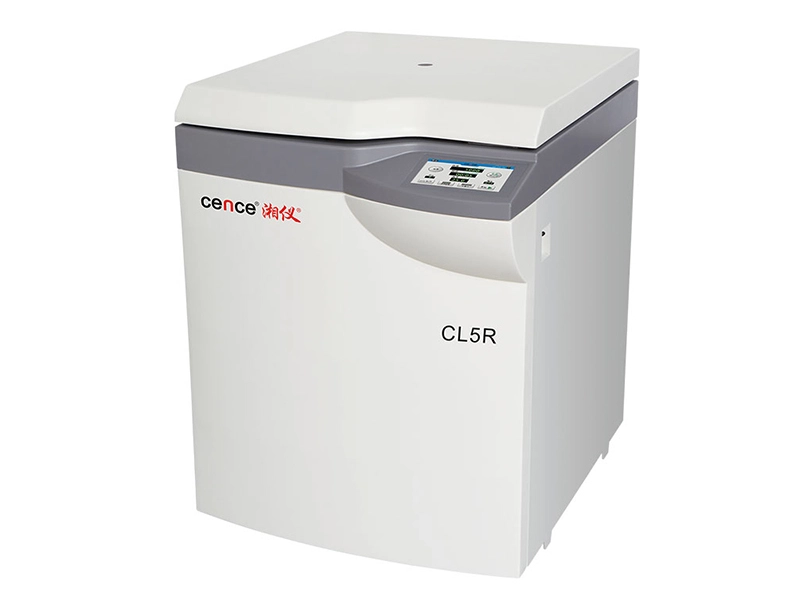

Large Capacity Low Speed Refrigerated Centrifuge

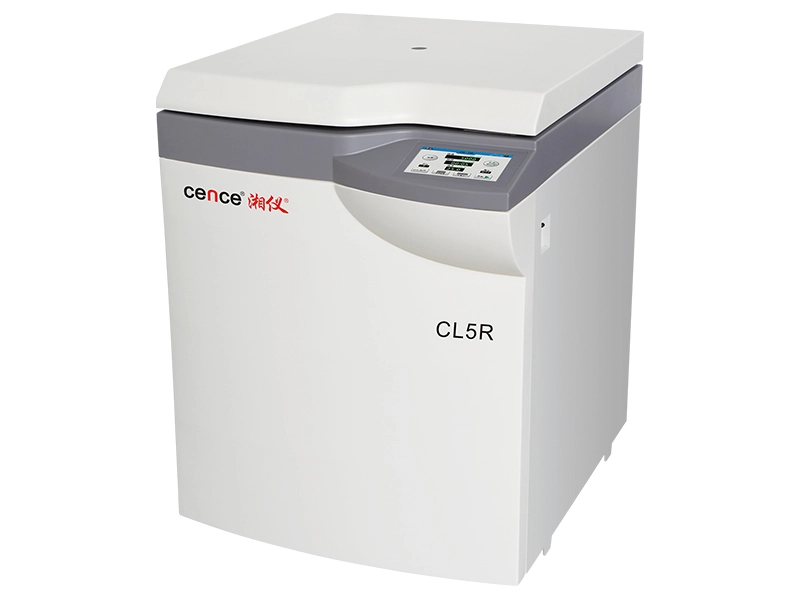

CL5R（refrigerated) are a new generation of smart centrifuges with new UI interface design to meet the new demand of customers. Featuring small footprint and cost-effective. It can quicken separation with 6x500ml or 4x1000ml swing rotor. Enhanced ergonomics combined with the quick set-up of traceable, reproducible runs makes the centrifuge CL5R/CL5 the choice for simplified blood processing productivity.

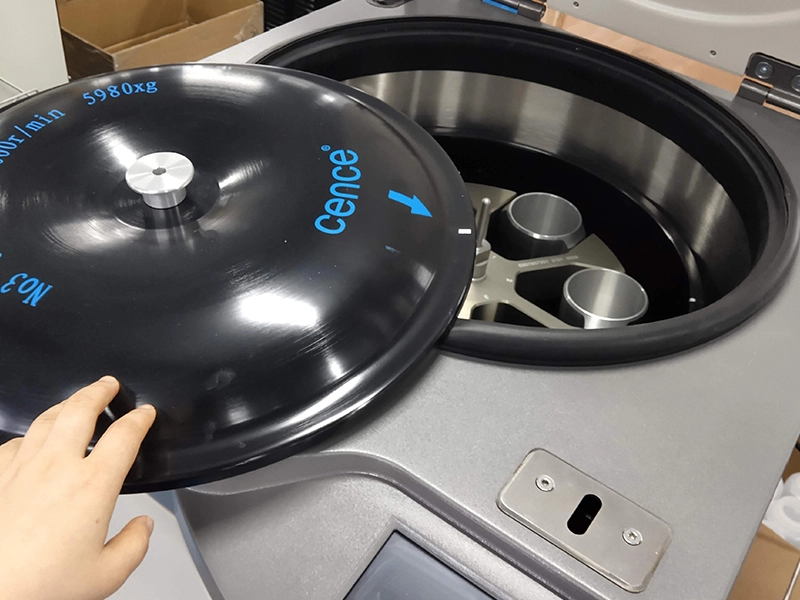

The sturdy rotor adopt 7075-T6 alloy aluminum, hard oxidation, corrosion resistance.
It can handle the samples with large capacity or with multiple tubes.
Equipped with triple protection structure of inner chamber, jacket and housing. Non-contact imbalance protection and multiple protective functions, including the protection of over-speed, over-temperature, motor over-heating as well as door lid, ensure safety of samples, centrifuge and operator.
In Manual mode, parameters can be set quickly. RCF and speed be shifted by just touch the key. The stability of temperature and speed during spinning can be viewed through the curve.
ISO9001, ISO13485 quality system have been effectively running for 15 years, ensure the stability and consistency of the product quality.
Featuring 10 ACC and 11 DEC rate to prevent second emulsion or turbid, to achieve best centrifugation result.
Running data, error code record and operation record can be stored through the system setting. Chinese / English / German / French / Spanish operation language optional. And user authority management and other characteristic functions can be managed as well.
Blood components separation: It can separate 4x450ml triple blood bags or 8x200ml triple blood bags with quick centrifugation programs, compact design as well as ideal cost-effectiveness.

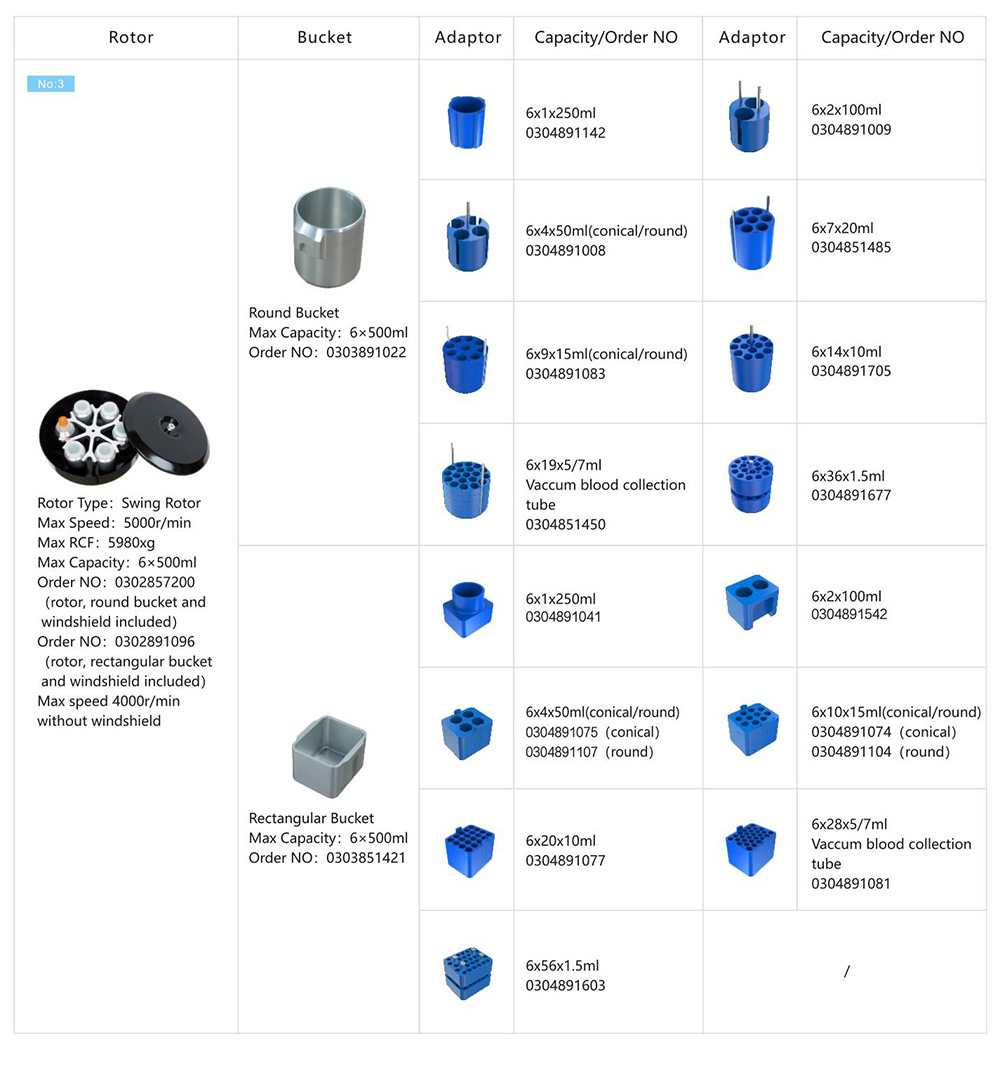

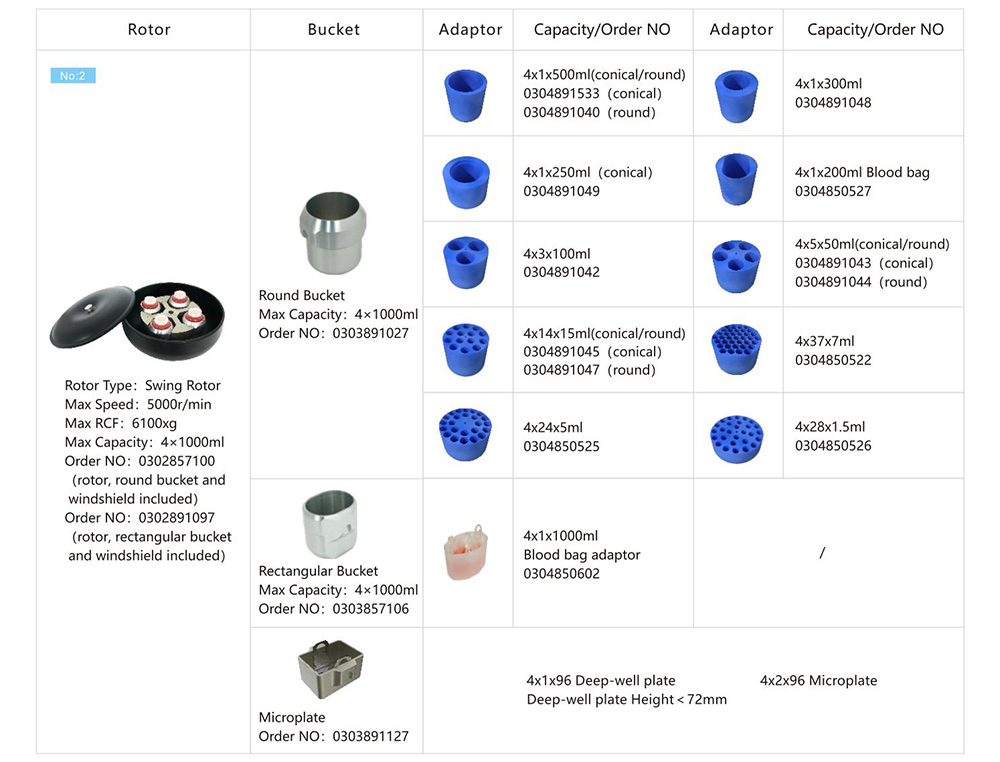

Multiple adapters available, accommodate to almost all the tubes used in hospitals. Swing rotor 6x500ml, it can spin up to 168pcs vacuum blood collection tube in one cycle, meet the requirement of high-volume mass centrifugation in hospital.
|Max. Speed||Angle Rotor 5000r/min|
|Swing Rotor 5000r/min|

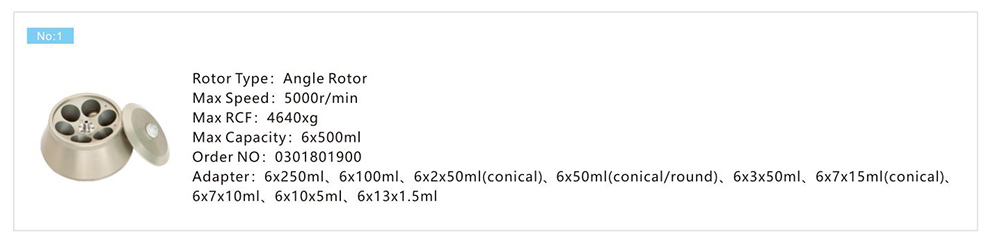

|Max. RCF||Angle Rotor 4640xg|
|Swing Rotor 6100xg|
|Max. Capacity||Angle Rotor 6x500ml|
|Swing Rotor 4x1000ml|
|Speed Range||100RPM to Max. speed with step 100RPM|
|Time Setting Range||1min to 99h59min|
|Timing Mode||Start timing after spinning, Start timing after reach setting speed, Short spinning or Continuous timing, Operation at an appointed time|
|Temperature Setting Range||-20℃ to 40℃ (1℃ adjustable)|
|Compressor Unit||High Performance Compressor Unit; Environment-friendly Refrigerant（R404a）|
|Power Supply||AC 220V±22V 50HZ|
|Packing Dimension (WxDxH)||820x1000x1080mm|
