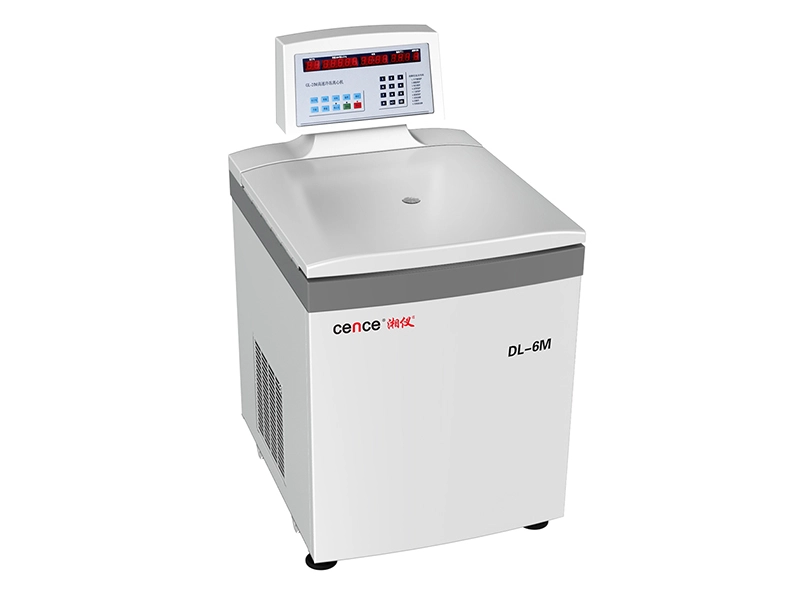

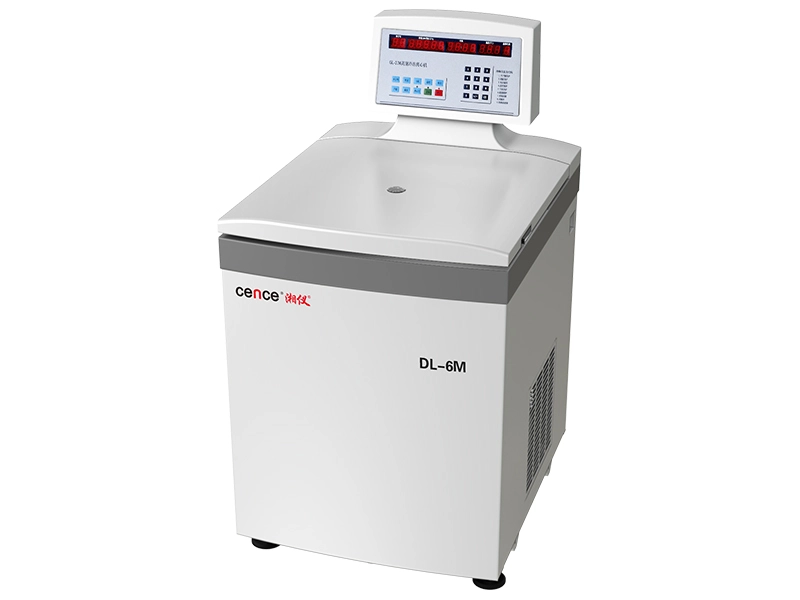

DL-6M Large Capacity Low Speed Refrigerated Centrifuge

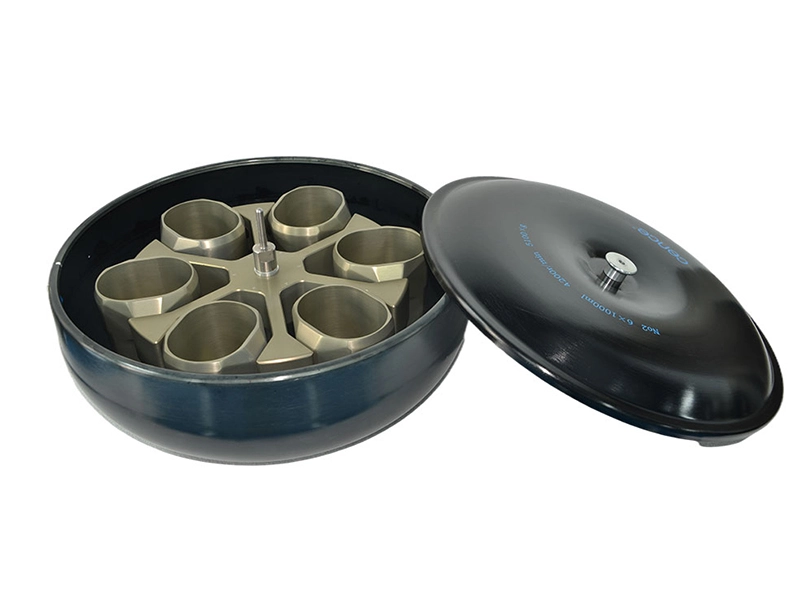

DL-6M large capacity low-speed refrigerated centrifuge is a classic model developed by Xiangyi/Cence, which is very popular in the market. With swing rotor 6x1000ml (round bucket) and 6x1000ml (oval bucket), it's an ideal instrument for biopharmaceutical, biological products and blood bank.
9 acceleration and 10 deceleration option based on user's requirement.
Touch panel, LED display
Environment-friendly refrigerant is adopted. The temperature setting range is - 20 ℃ ~ 40 ℃, and maximum speed temperature can be controlled below - 4 ℃.

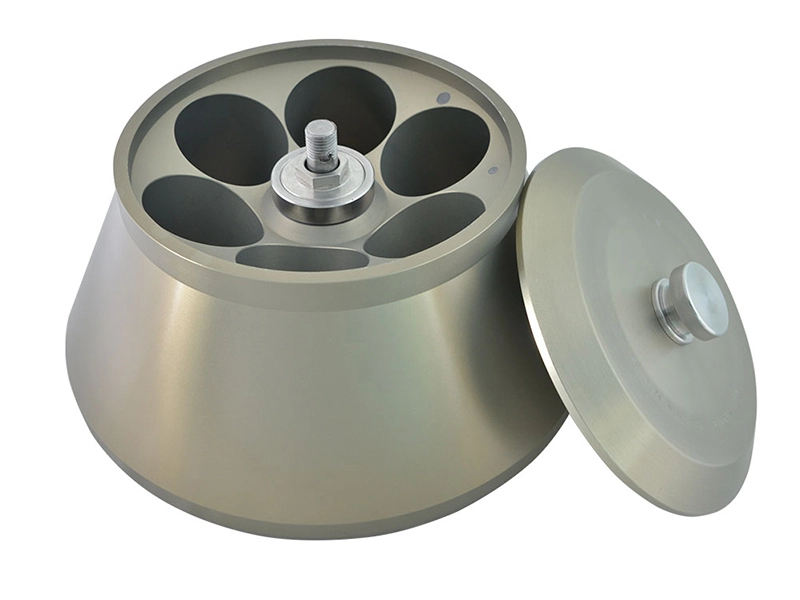

The rotor adopt 7075-T6 aviation grade alloy aluminum, hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report, tensile test report, chemical composition test report and processing test report can be provided.
Multiple protection against imbalance, over-speed, over-temperature as well as door lid.
AC brush-less motor is more reliable.
Whole steel housing and three tiers containments for the safety of operator and instrument.
Low noise (less than 65dB) and low vibration.
Model | DL-6M |
Order No. | 204126000 |
Max. Speed | Angle rotor 6000r/min |
Swing rotor 4200r/min | |
Max. RCF | Angle rotor 6680xg |
Swing rotor 5100xg | |
Max. Capacity | Angle rotor 6x500ml |
Swing rotor 6x1000ml | |
Speed Accuracy | ±10r/min |
Time Setting Range | 1min to 99h59min |
Timing Mode | Start timing after reach setting speed |
Temperature Setting Range | -20℃ to 40℃(Step 1℃ adjustable) |
Temperature Accuracy | ±2℃ |
Compressor Unit | High Performance Compressor Unit; Environment-friendly refrigerant(R404a) |
Drive system | High torque brushless motor |
Noise | ≤ 65dB(A) |
Power Consumption | 3.0kW |
Power Supply | AC220V±22V 50Hz |
Dimension (WxDxH) | 730x840x1200mm |
Packing Dimension (WxDxH) | 920x1040x1520mm |
Net Weight | 260kg |
