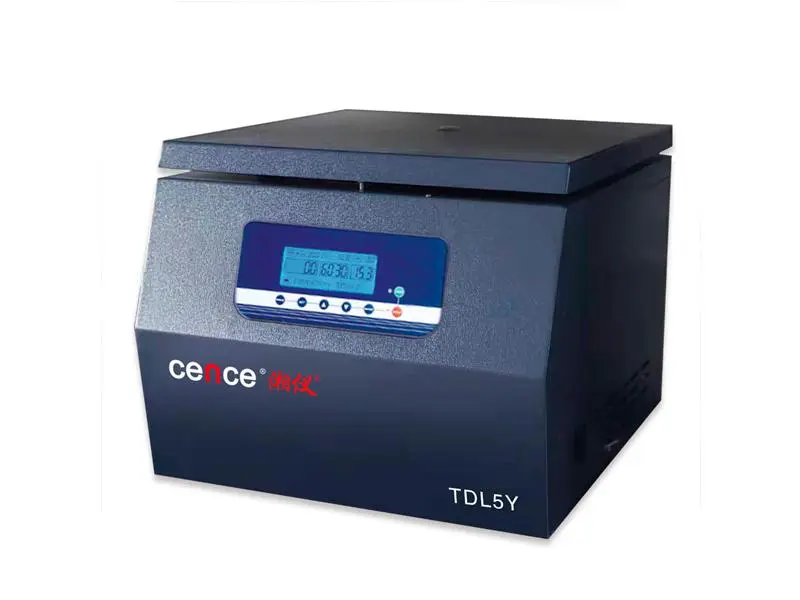

TDL5Y Oil Testing Centrifuge

Advantages of TDL5Y Crude Oil Centrifuge

• LCD display to show rotor No., speed, time, temperature, RCF, Acc/Dec rate and trouble information/error code.

• Circular heater for fast heating and temperature uniformity realizes the functions of temperature controlling and temperature holding, which meet the temperature requirements for oil industry.

• Frequency-conversion motor with high torque is characterized by stable and fast acceleration/deceleration as well as long service life, maintenance free, and low noise for stable operation.

• The tube is manufactured by special process, which won't be broken so easily during operation, and it's widely used in Daqing Oilfield.

• Self-diagnosis system can automatically detect the faults of over-speed, over temperature and display the error code on the display screen to improve the safety performance.

• Simple operation: Microprocessor control and touch panel. Speed, RCF, temperature, time and Acc/Dec rates can be set freely. The parameters can be revised during a run for convenient use.

Technical Parameter Of TDL5Y Crude Oil Centrifuge

Rotor Parameter of TDL5Y Crude Oil Centrifuge

	Rotor Type	Swing Rotor
	Max Speed	4000r/min
	Max RCF	3150xg
	Max Capacity	36x10ml
	Order NO	302851400
	Bucket Order NO	303853010
	10ml oil tube Order NO	305540120

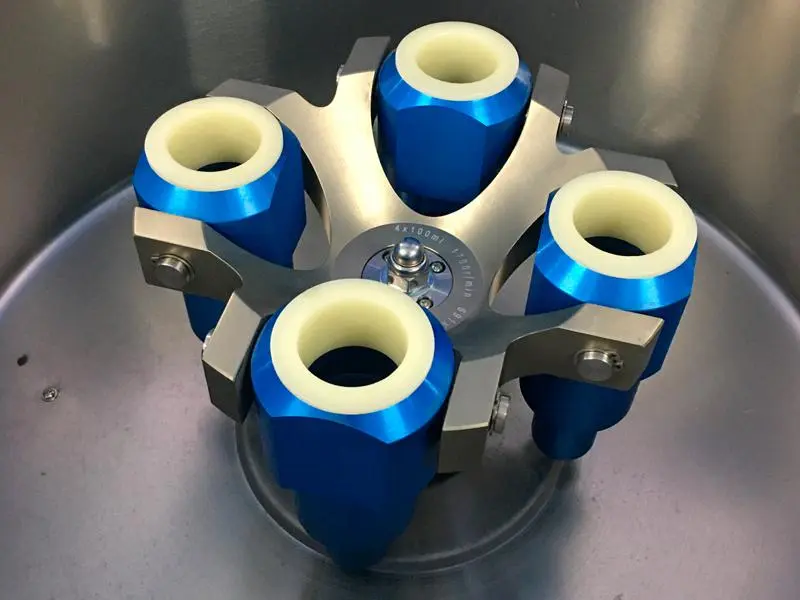

	Rotor Type	Swing Rotor
	Max Speed	1700r/min
	Max RCF	691xg
	Max Capacity	4x100ml
	Order NO	302852950
	Bucket Order NO	303852910
	100ml oil tube Order NO	305540110
