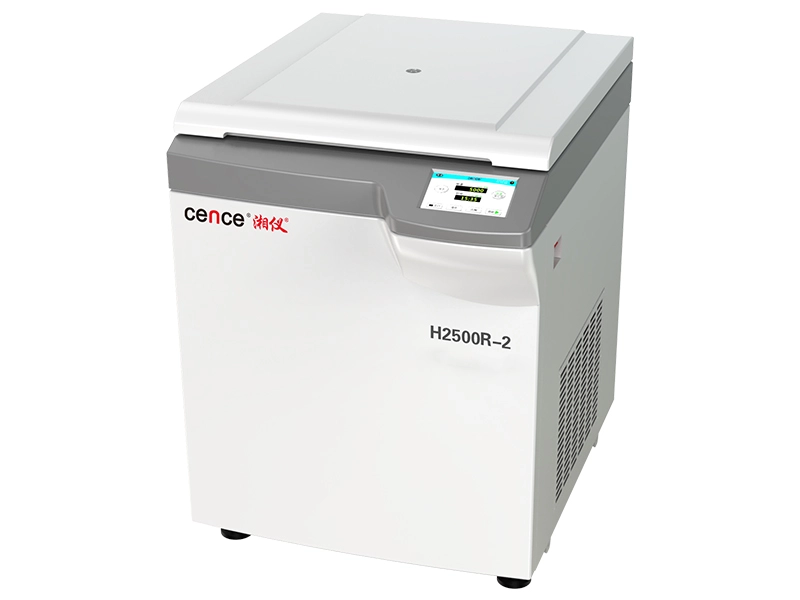

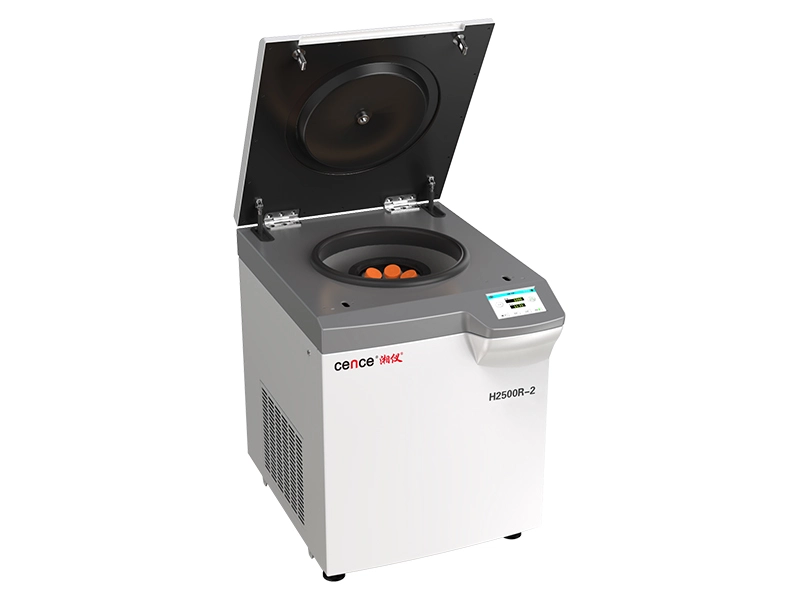

H2500R-2 Large Capacity High Speed Refrigerated Centrifuge
H2500R-2 high speed refrigerated centrifuge ingrates many high-technologies of Cence/Xiangyi and new design elements. Enhanced ergonomics design and easy to operate. The breakthrough of high-speed operation technology makes the max speed up to 25000r/min with RCF at 64800xg. It is widely used in academic research, scientific research and bioengineering etc.
Max speed up to 25000r/min, Max RCF up to 64800xg ( with NO.1 Rotor)
Automatic rotor identification, automatic over-speed protection for added safety.
Automatic storage of main machine and rotor operating parameters, automatic calculation of rotor service life, and alarm.
Directly driven by a high-torque variable frequency motor, with large starting torque and short acceleration time.
Equipped with multiple protection against imbalance, over-temperature, over-speed, to ensure user's safety as well as instrument.
Super powerful control system, offering step centrifugation, scheduled start, sample ID, curve mode, program mode, multi-language selection and other functions

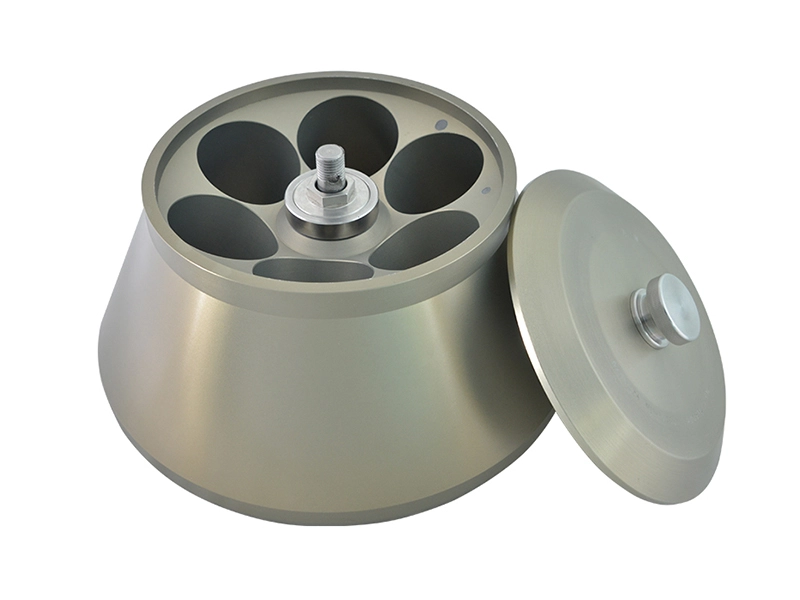

All aluminum alloy rotors are forged with 7075-T6 aviation grade aluminum alloy, the surface is hard oxidation, with thick oxide layer and strong corrosion resistance.
Data records: Data traceability management, running history records, diagnosis records can be checked on the screen or exported by USB port and saved to the relevant storage device, which can ensure the data integrity.
7-inch touchscreen interface with bright, highly visible, and durable display simplifies run set-up. The setting parameters and running parameters can be displayed simultaneously.

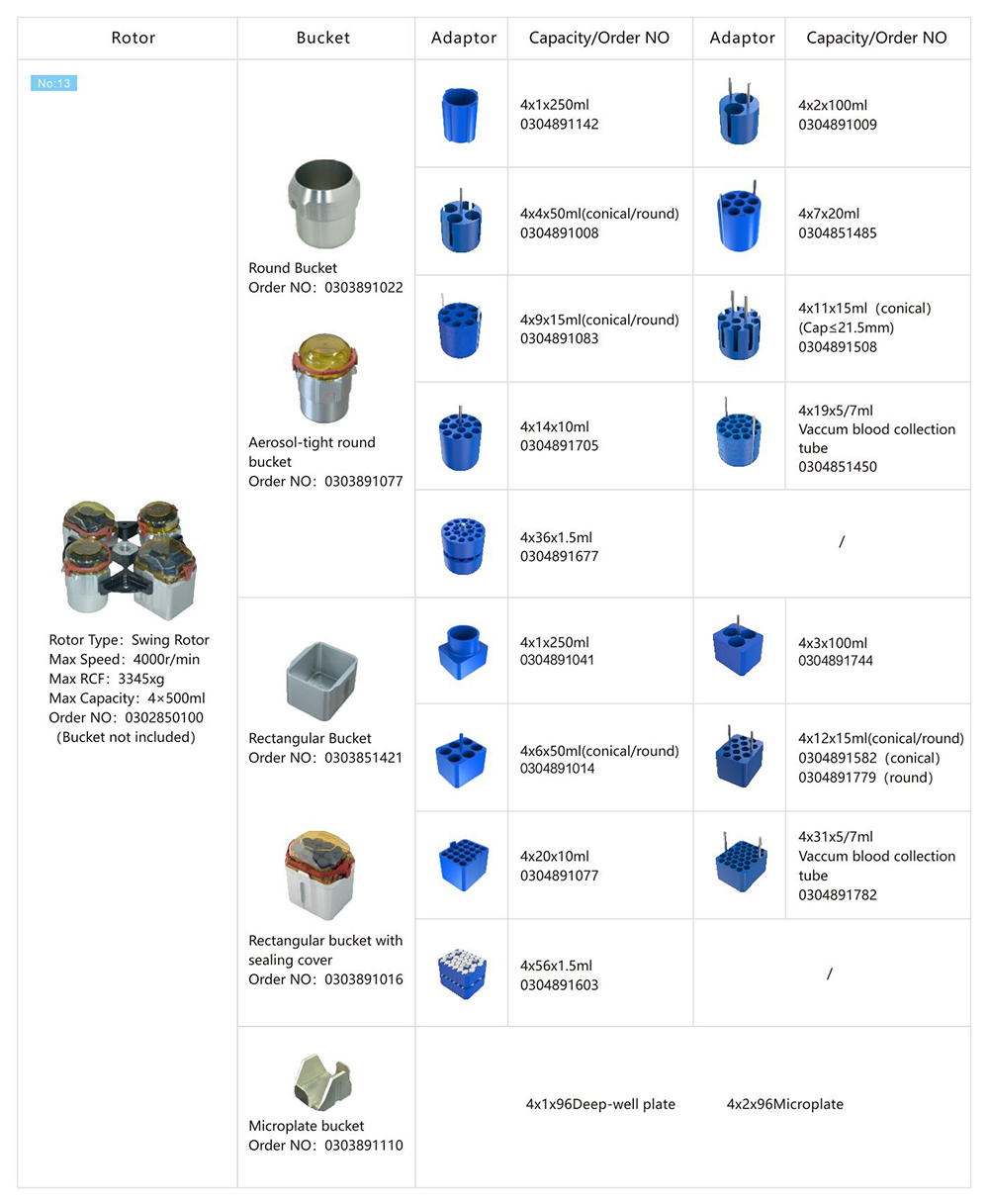

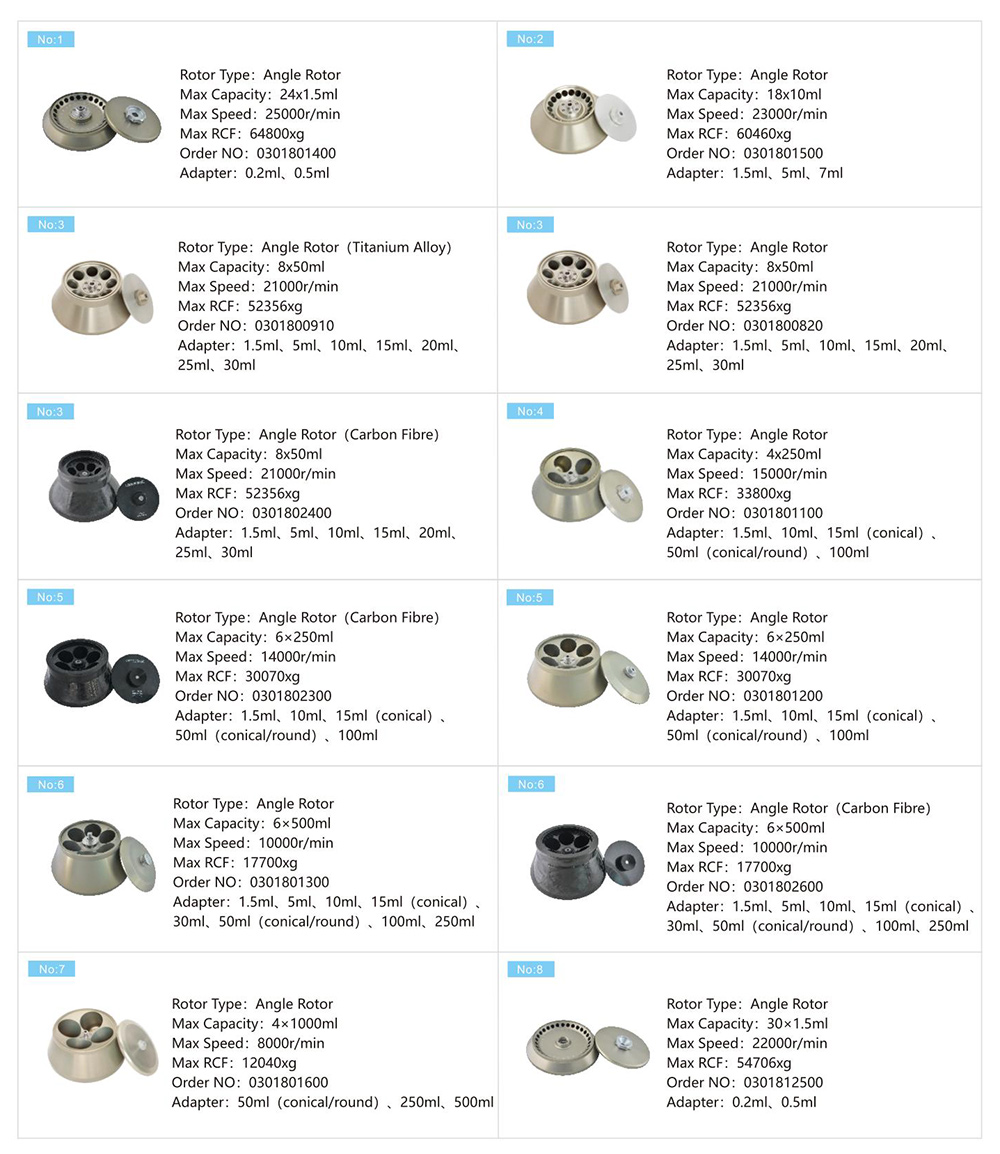

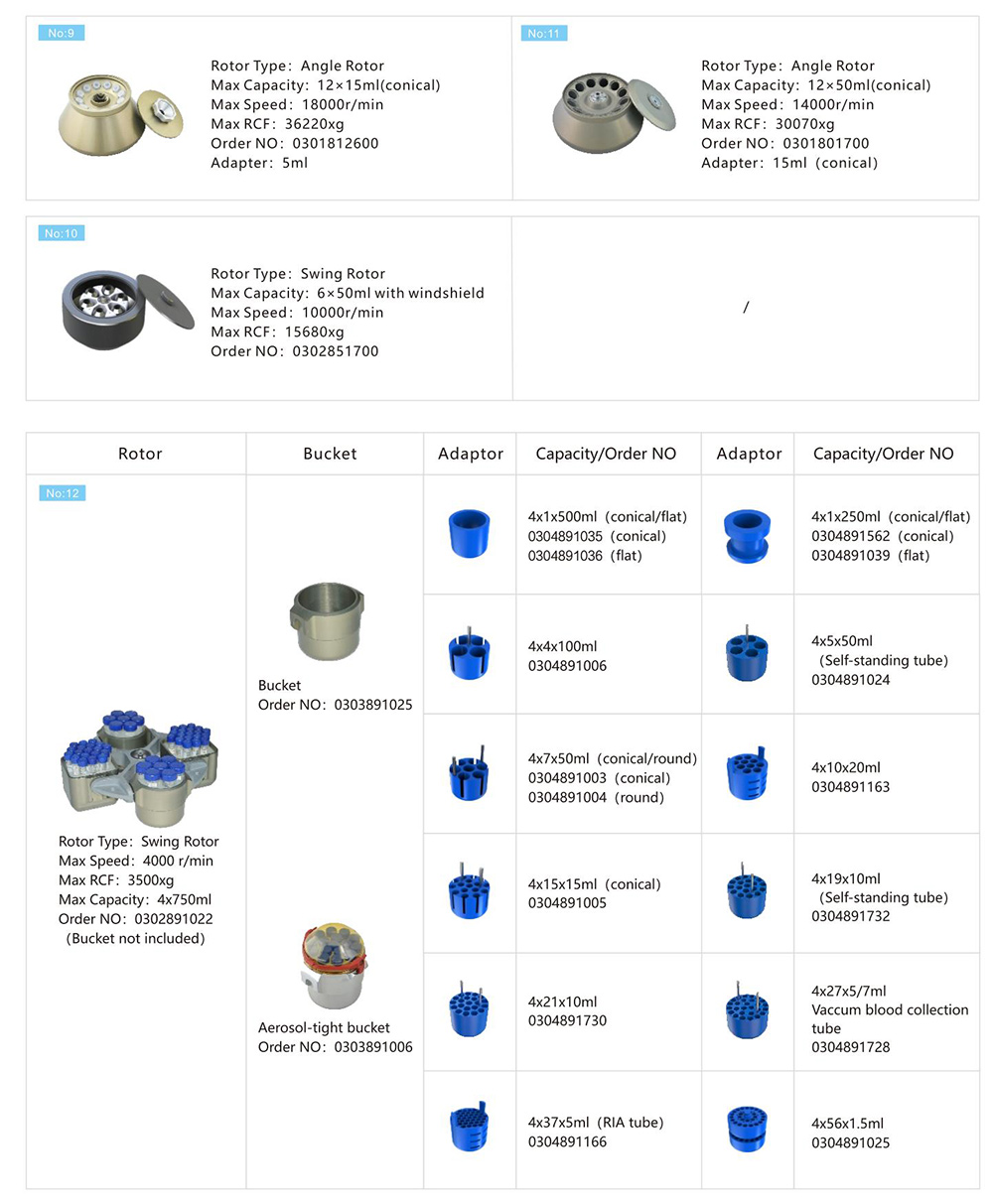

Choose from 13 optional rotors to find the ideal fit for your application.
|Max. Speed||Angle rotor 25000r/min|

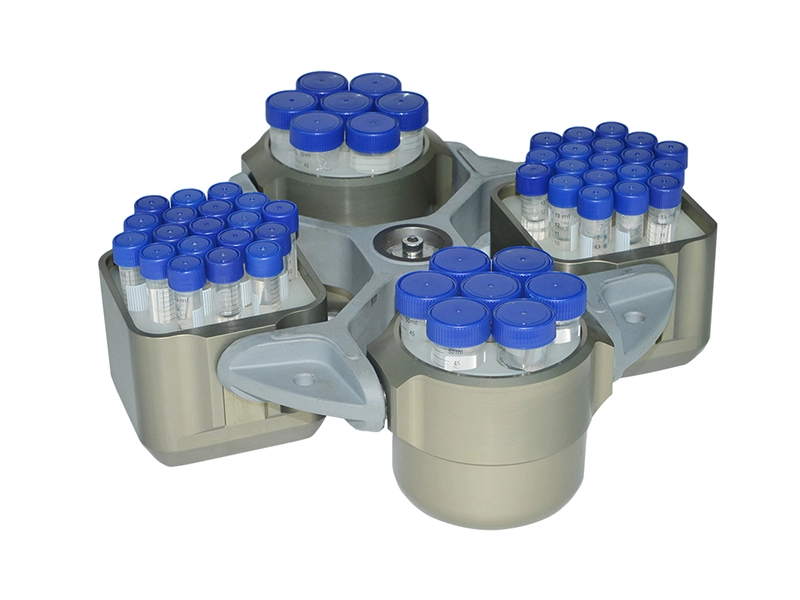

|Swing rotor 4000r/min|
|Max. RCF||Angle rotor 64800xg|
|Swing rotor 3500xg|
|Max. Capacity||Angle rotor 4x1000ml|
|Swing rotor 4x750ml|
|Time Setting Range||1min to 99h 59min|
|Timing Mode||Start timing after spinning, Start timing after reach setting speed, Short spinning or Continuous timing, Operation at an appointed time|
|Temperature Setting Range||-20℃ to 40℃（Step 1℃ adjustable）|
|Compressor Unit||High Performance Compressor Unit; Environment-friendly Refrigerant（R404a）|
|Drive system||High torque brushless motor|
|Power Supply||AC220V±22V, 50Hz|
|Packing Dimension (WxDxH)||880*1120*1180mm(L*W*H)|
