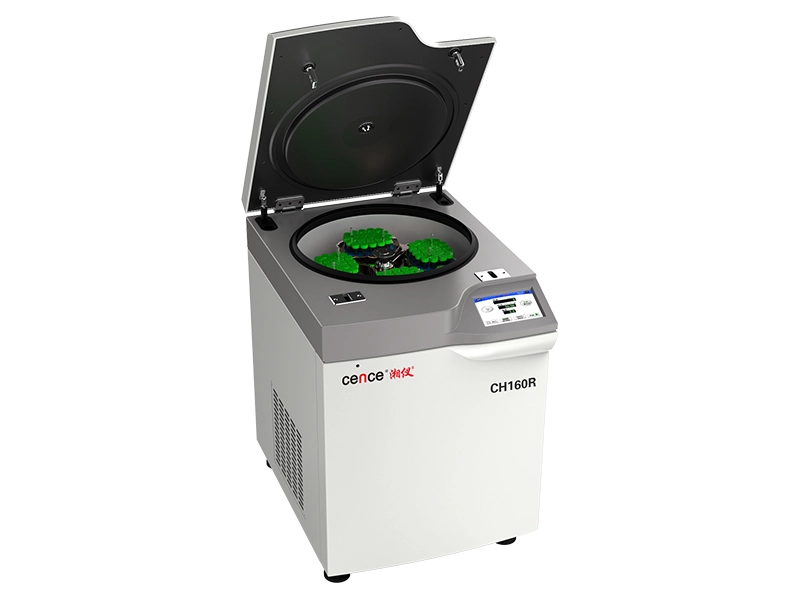

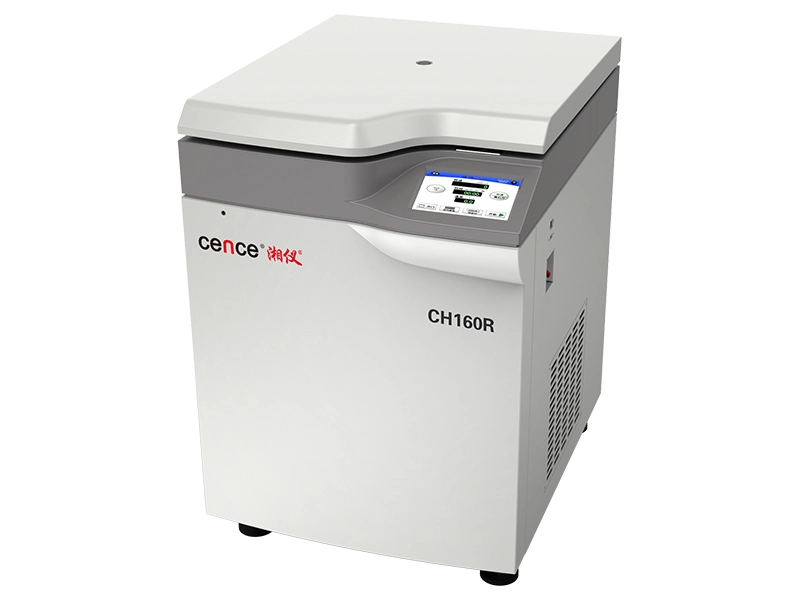

CH160R Large Capacity High Speed Refrigerated Centrifuge
CH160R centrifuge is extremely versatile and powerful. Swing rotor 4x1000ml (rectangular bucket), it can spin up to 40x50ml conical tube, 96x15ml conical tube and 148x10ml, 196x5/7ml vacuum blood collection tube, 20 pcs MTP in one cycle. So that a rotor can do multiple experiments without replacing the bucket. In addition, angle rotor 6x250ml and 8x50ml can realize high-speed centrifugation. It’s a universal centrifuge for different lab application.
High-throughput Sample Processing

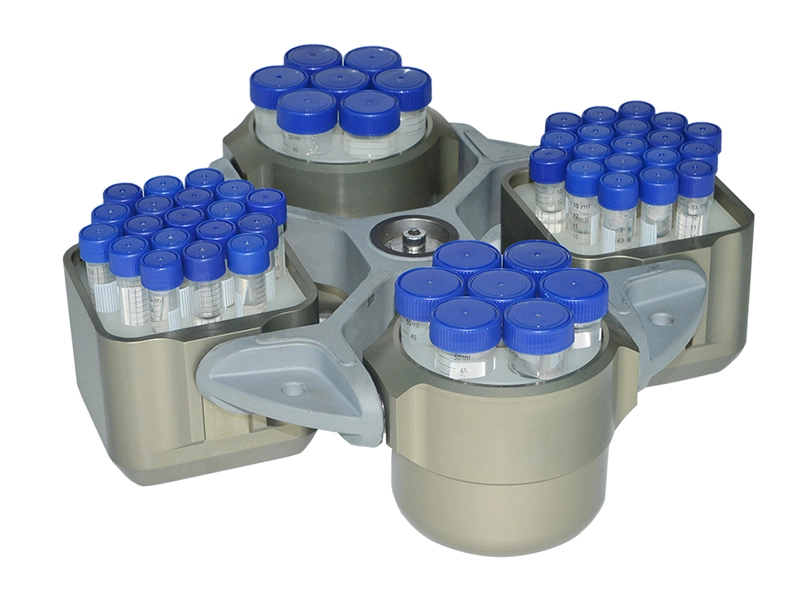

Swing rotor: Multiple rotor and adapters available, max capacity 4x1000ml, it can spin up to 36x50ml conical tube or 196x5/7ml vacuum blood collection tube in once cycle.

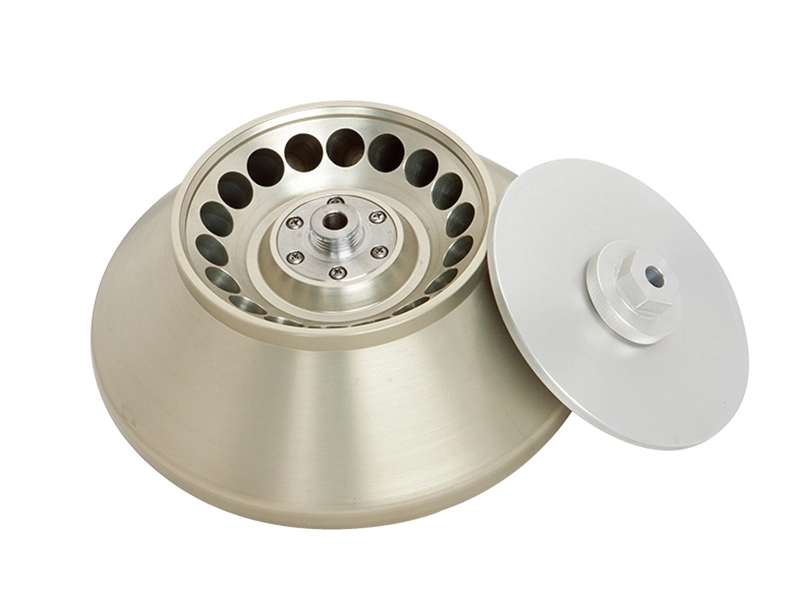

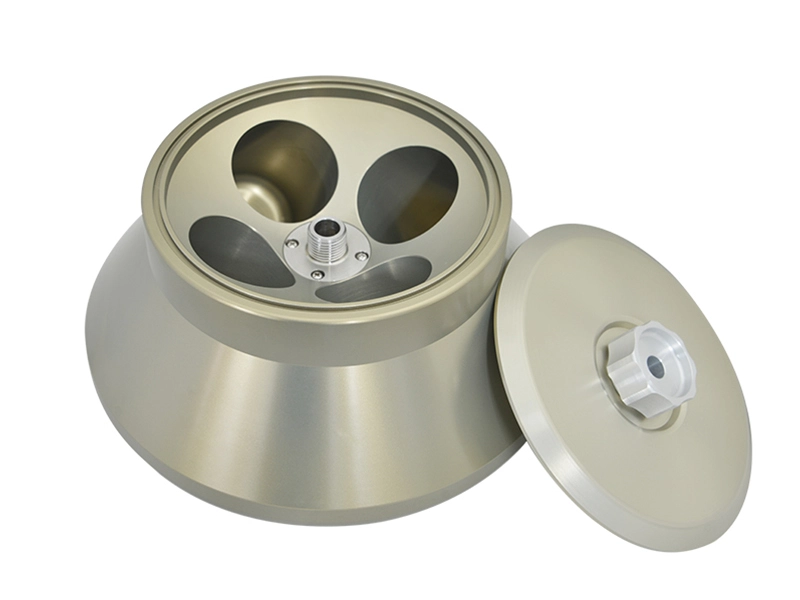

Angle Rotor: 9 rotor options, such as 6 x250ml, 8 x50ml, 48 x1.5ml. Max RCF up to27650xg, suitable for 0.2-250ml high-speed centrifugation of molecular biology.
The rotor adopt 7075-T6 aviation grade alloy aluminum and titanium alloy, hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report, tensile test report, chemical composition test report and processing test report can be provided.
The system adopts unified and standard Ethernet communication interface and provides key parameter point table, to facilitate system expansion and bring data into system monitoring.
Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps ( set speed, time, temperature ), to meet the diversified experimental needs.
Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifugal effect.
Main interface function
In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key.
Powerful System Setting Function
Powerful control system allows easy data capture, storage, and processing.
Energy Saving, Frequency conversion Technology
Frequency conversion dual channel control, refrigeration through frequency regulation, energy saving and high efficiency. According to the time interval of the experiment, the sleep time of the instrument can be set, which can ensure good refrigeration effect as well as save energy and increase the service life of the instrument.
Featuring multiple protection, Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
|Max. Speed||Angle Rotor 16000r/min|
|Swing Rotor 5700r/min|
|Max. RCF||Angle Rotor 27648xg|
|Swing Rotor 5103xg|
|Max. Capacity||Angle Rotor 6x250ml|
|Swing Rotor 4x1000ml|
|Time Setting Range||Two modes optional:1min to 99h59min and 1s to 99min59s；Default mode: 1s to 99min59s|
|Timing Mode||Start timing after spinning, Start timing after reach setting speed, Continuous timing, Operation at an appointed time|
|Temperature Setting Range||-20℃ to 40℃, Step 1℃ adjustable|
|Computer Control||RS485 or RS232|
|Protection Function||Imbalance Protection, Rotor Identification, Door Lid Anti Pinch Protection, Motor Overheating Protection, Over-speed Protection and Over-temperature Protection|
|Automatic Door Lid Opening||Yes|
|Power Supply||AC220±22V 50Hz|
|Packing Dimension (WxDxH)||750x880x1200(mm)|
