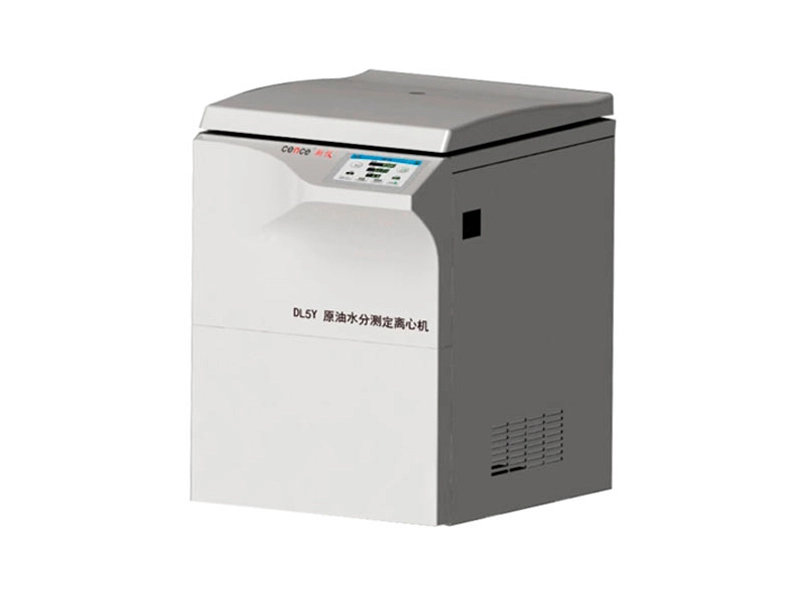

Crude oil centrifuge DL5Y used in petroleum, geological industry, it is essential for the separation of oil equipment. It meets the requirements of GB/T6533-86 standard, and makes use of centrifugal separation to determine the water content of your crude oil sample.
LCD display to show rotor No., speed, time, temperature, RCF, ACC/DEC rate and error information/error code.
Adopts band heater, fast heating speed, temperature uniform, with the function of temperature-control and constant.
Stainless steel chamber, safe and reliable.
The glass oil tube is manufactured by special process, which won't be broken so easily during operation, and it's widely used in Daqing Oilfield.
Model | DL5Y |
Order No. | 0205136000 |
Max. Speed | 4000r/min |
Max. RCF | 3150xg |
Max. Capacity | 4x100ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1min to 99min |
Temperature Setting Range | Room temperature+10℃ to 70℃ |
Noise | ≤65dB(A) |
Power Supply | AC220V±22V 50Hz |
Power Consumption | 1500W |
Dimension (WxDxH) | 560x660x850mm |
Packing Dimension (WxDxH) | 756x856x1320mm |
Weight | 108kg |

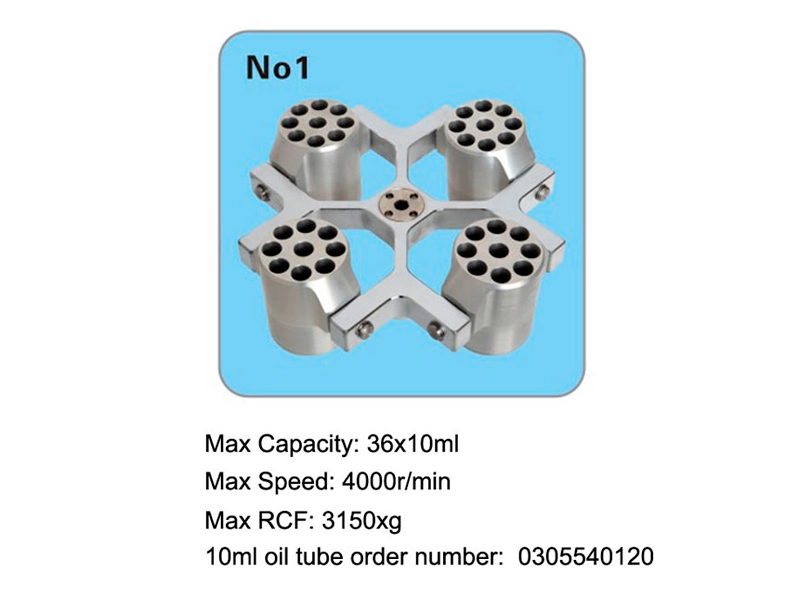

Rotor Type | Swing Rotor | |
Max Speed | 4000r/min | |
Max RCF | 3150xg | |
Max Capacity | 36x10ml | |
Order NO | 302851400 | |
Bucket Order NO | 303853010 | |
10ml oil tube Order NO | 305540120 |

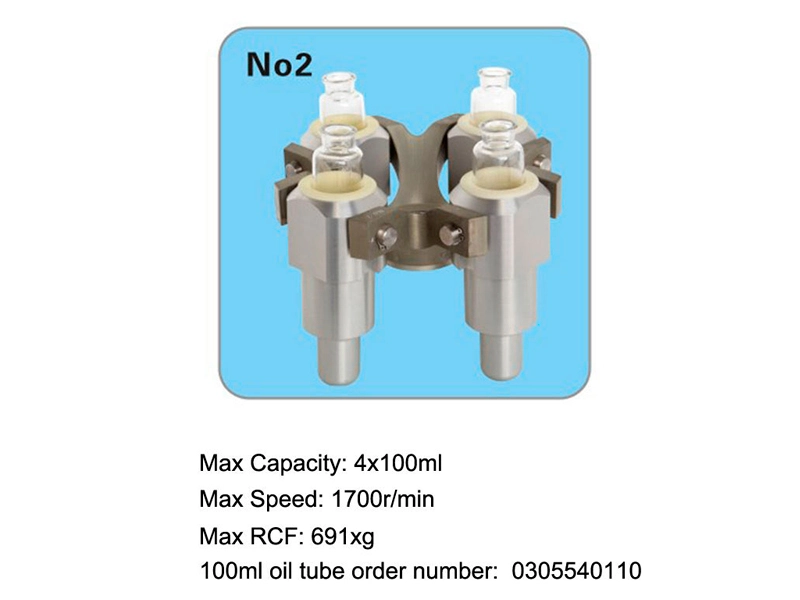

Rotor Type | Swing Rotor | |
Max Speed | 1700r/min | |
Max RCF | 691xg | |
Max Capacity | 4x100ml | |
Order NO | 302852950 | |
Bucket Order NO | 303852910 | |
100ml oil tube Order NO | 305540110 |
